Vertical Lift Module (VLM), Logimat by SSI Schaefer
LOGIMAT® IS THE ALL-IN-ONE STORING AND PICKING SOLUTION

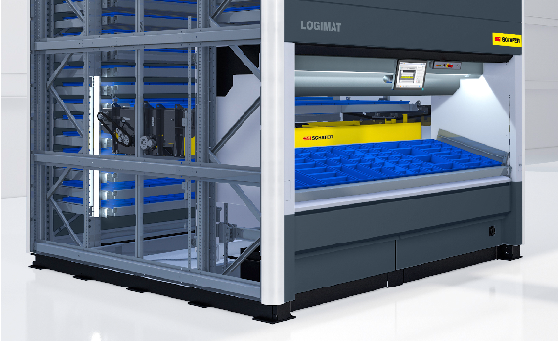

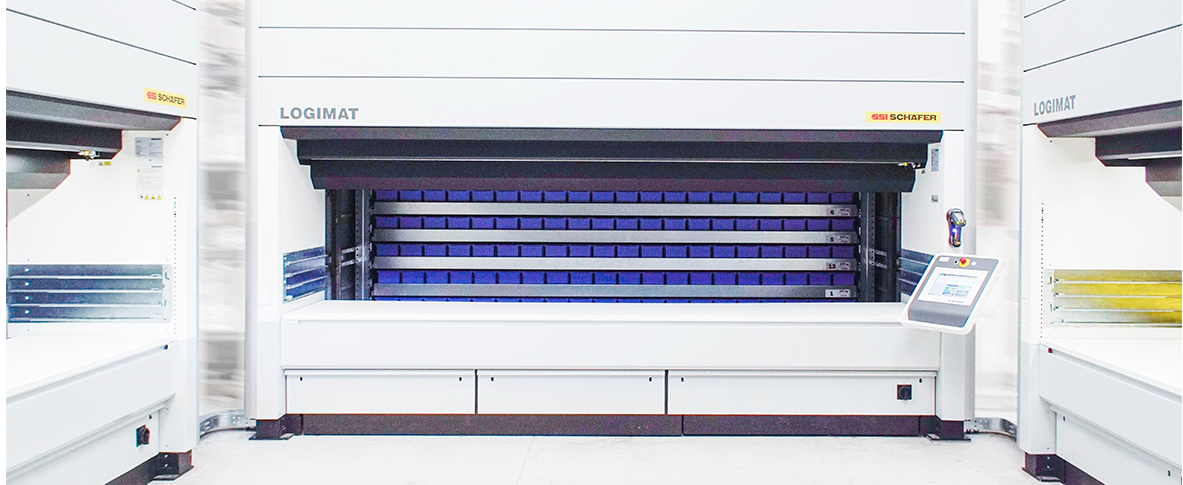

The LOGIMAT® Vertical Lift Module is similar to an oversized drawer cabinet with two stacks of trays, one at the front and one at the back. Between the two rows of trays is a lift. This lift climbs the entire height of the vertical storage machine to remove an individual tray from the respective positions and to deliver them to the access opening.

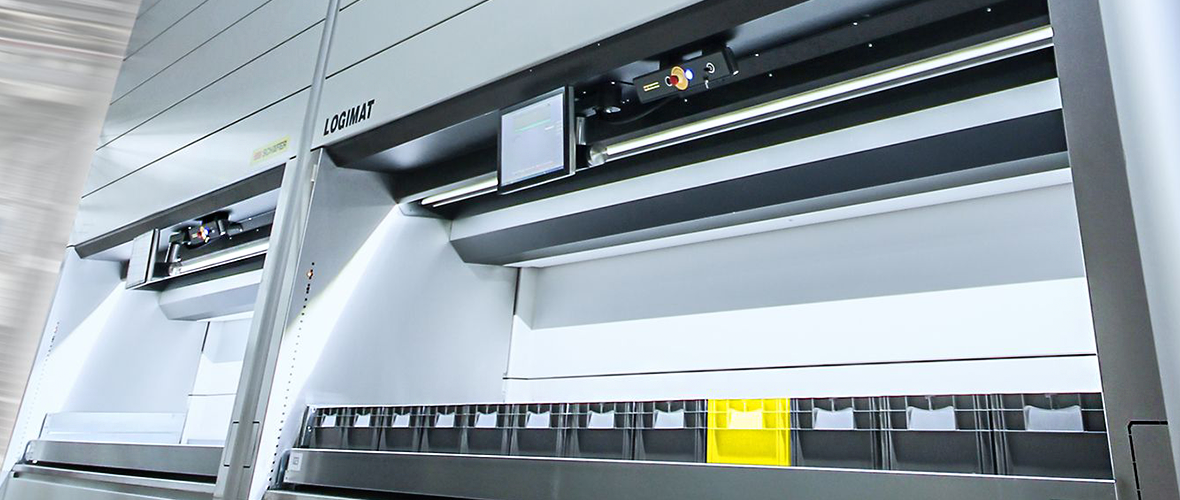

The unit has an opening at the front and allows users to select a specific tray via a user interface. The unit sends the tray down to the opening and enables the user to pick their item safely and securely.
VLMs save an enormous amount of space, which means items take minimal square footage since everything is stored vertically.
Users incorporate VLMs for various applications too—everything from nuts and bolts to high value items or pharmaceuticals. Plus, many VLMs come with options that make picking virtually error-free and provide ergonomic benefits to increase picking speeds.
Autonomous, or integrated with an ERP or WMS, the LOGIMAT® provides an array of benefits that increase picking efficiency and accuracy, reducing your cost of order fulfillment.
Autonomous, or integrated with an ERP or WMS, the LOGIMAT® provides an array of benefits that increase picking efficiency and accuracy, reducing your cost of order fulfillment.
LOGIMAT® VERTICAL LIFT MODULE (VLM) HIGHLIGHTS
LOGIMAT® VLM HIGHLIGHTS
- Highly convenient goods-to-person principle
- Compact design has economical and environmental advantages
- Highest storage density for small parts, up to 90% less floor space
- Automated processes and ergonomic design improve performance by over 20%
- Streamlined warehouse processes for picking and replenishment
- Simple integration into existing processes
- Virtually error-free picking
- Simple user guidance with minimal training requirements for operation
- Increased performance through automated processes and greater ergonomics
- Easy to scale for a future-proof warehouse
- Intuitive user interface with touch panel
- Adds additional security for high-value items
- Windows 10 operating system
LOGIMAT® VERTICAL LIFT MODULE (VLM) EXCLUSIVELY FROM SSI SCHAEFER
EXCLUSIVELY FROM SSI SCHAEFER
- Rack and pinion gear system, which provides a smooth and quiet operation
- LogiTilt provides ergonomic retrieval of goods by reducing the reach for trays
- An innovative tray design allows for space and weight optimization
- Touch user interface with intuitive navigation
- Sorting accessories, such as the LMB bin series, are optimized for a tray depth of 800 mm / 31.5“

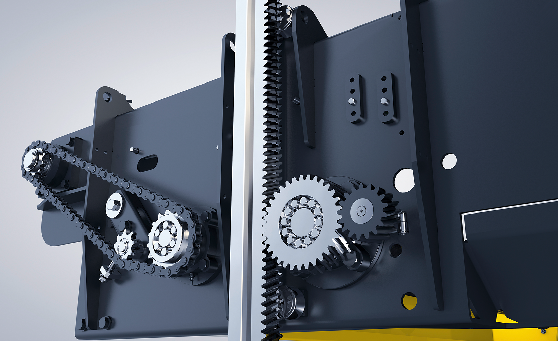

The LOGIMAT® Vertical Lift Module features an exclusive rack and pinion gear system that prevents common misalignments due to standard belts and chains, and drastically reduces downtimes and required maintenance. The tray lifter moves up and down on the steel columns, driving trays with engineered precision every time.
Compact
- Maximum use of storage with minimum footprint
- An easy to read visual display indicating filling capacity
- Defragmentation and relocalization of stored trays
- Stock addition sequence with fixed height for highly concentrated storage
- Stock addition sequence with intelligent height optimization (IHO)
- Storage of trays in 25 mm / 1” increments
Safe
- Automated monitoring of storage bins ensures that stored inventory is within the permitted vertical and horizontal dimensions
- An easy to read visual display indicating filling capacity
- Vertical shaft monitoring checks for possible tray protrusions before the elevator moves
- Predefined access rights to trays and functions
- Programmable logic controller (PLC)
Robust
- A modular design using standard components
- A low-maintenance system due to high-quality components and a robust design
- Offers a range of options for different requirements
- Features an elevator with a low-maintenance gear drive
- Rack and pinion helical gear design ensures a smooth operation and higher load carrying capacities
Ergonomic
- A laser pointer provides visual cues indicating the storage position of a specific item, which is also highlighted on the GUI
- The tray tilt option improves picking performance and eliminates employee fatigue
- Up to four operating positions per vertical lift module
- Personalization of tray heights accommodate individual employee reach
FUNCTIONS AND FEATURES

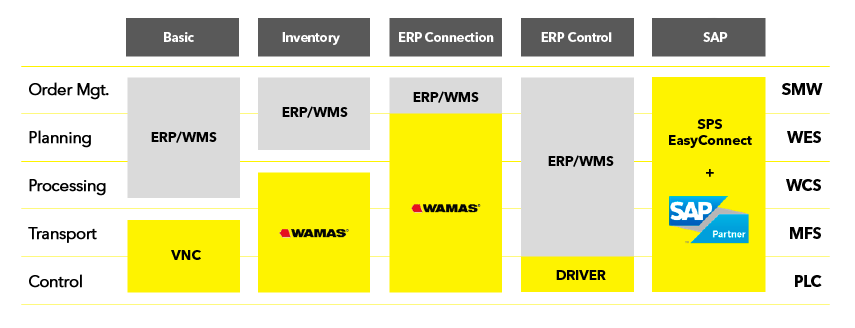

Warehouse operations vary depending on the application. Technical requirements vary as well when deciding how to implement a VLM into an operation process. From the simplicity of a standard controller (PLC) to a highly technical SAP integration, SSI SCHAEFER offers an array of technical options for the LOGIMAT.
