Introduction

It masters almost all transport tasks – goods are transported to the intended destination safely and without access restrictions. What's more, this is achieved with low purchase and operating costs. The automated guided vehicles navigate along an optical track that can be installed quickly,easily and in a flexible manner.

With the Weasel automated guided vehicle (AGV), SSI Schaefer offers an innovative solution that is equally impressive in terms of its flexibility and scalability. Changing customer requirements and fluctuations in demand can be managed at any time, both cost-effectively and at short notice.

WEASEL®, Quick and Flexible

Standardized control software permits use regardless of the customer – there is no need for any complex installation and customization work. As a result, short-term scaling of the system presents no problems.

The transport orders are generated by your in-house material flow system. A fleet controller manages the orders and assigns them to the relevant vehicles following release. The Weasel vehicles are equipped with a control system that executes the orders based on specified way points.

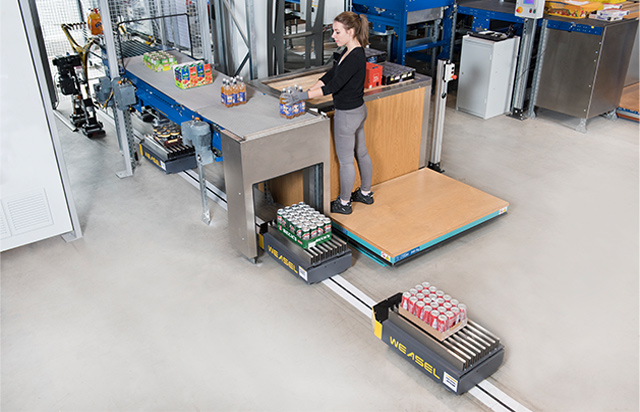

Integration and combination with an existing conveying system

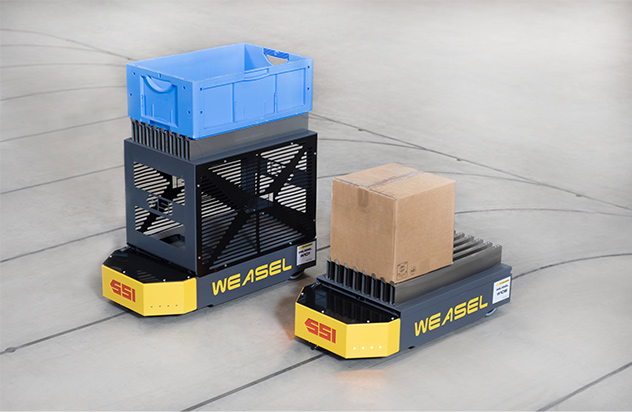

By deploying small vehicles, even inaccessible zones can be put to good use. The Weasel transports bins, boxes or small parts of varying dimensions, and can be combined with a conventional conveying system. Special handling systems are used to load the Weasel and then deposit its cargo via docking rails back onto the conveying system.

Features

• High flexibility due to optical track guidance and scalability
• Barrier-free transport of totes, bins or heterogeneous products
• High availability thanks to lead-gel batteries requiring no maintenance
• Option of automated connection to internal material flows
• Easy to integrate into existing systems
• Options for sequencing and overtaking
• Small size enables use even in inaccessible zones
• Designs of different heights for optimum ergonomics
• Manual and automatic loading and unloading
• High level of personal safety without complex sensor technology
• Cost-effective purchase

Benefits

The Weasel automated guided vehicle stands out from traditional conveying systems due to a range of advantages:

• Barrier-free solution that does not require a lot of space
• Gentle and safe transport of sensitive goods
• Trayless transport of the heaviest goods, in various sizes
• Easy sequencing of your transport goods
• Easy to handle peaks in performance
• High flexibility with regard to system customisations and extensions

Key Tech Data

• Transport weight of up to 35 kg
• transport unit size: 120 × 120 × 45 mm – 650 × 450 × 510 mm
• Small vehicle dimensions (L×W×H): 810 × 420 × 285 mm
• Optional structure for ergonomic manual loading and unloading
• Operating times of up to 18 hours
• Power supplied by lead-gel rechargeable battery packs with quick-change frame and external charging cabinet
• Optional recharging stations for three-shift operation
• Speed of up to 1 m/s, dependent on load
• Acceleration of up to 0.8 m/s2
• Vehicles have 1,000 mm turning radius
• Can climb inclines of up to 20 percent
• Can be used in the temperature range between 5°C and 50°C

Hermes Fulfilment GmbH, provider of international full-service e-commerce solutions, is tackling new challenges using the AGV WEASEL®. A flexible link has been generated between various areas with no access restrictions. The innovative fleet solution can grow with the company and provides automated goods transport, optimization of processes and a high degree of flexibility.
