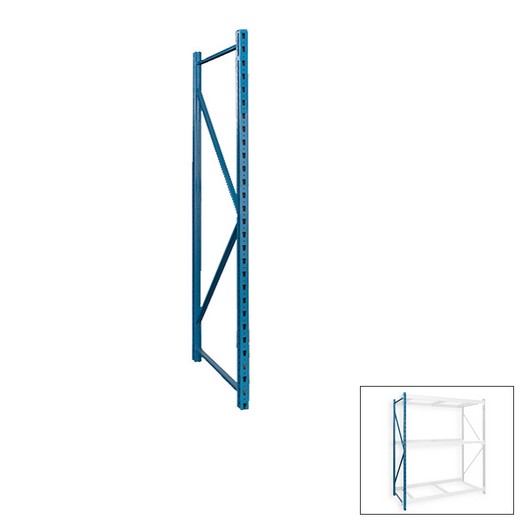

Bulk Rack Shelving is designed for storage areas in which goods are handled manually instead of being transported on a pallet. The stepped beam design can accommodate a wide range of decking options, including steel decking, wire decking and particle board decking, with almost twice the loading capacity of standard shelving units, up to 3,000 lbs. per shelf. Easy to adjust levels give flexibility for distribution centers with a large range of SKUs and skid sizes. Manufactured in the US. 99"W x 48"D Bulk Rack Frame Blue (SKU# HBSF.9948B)
- Posts shall be fabricated from 14 gauge cold rolled steel and roll formed into an 1-1/2" wide x 2-15/16" deep tubular section.
- Rear flanges are welded on 6"centers to provide maximum strength.
- Sides of the post are punched 1-1/2" on center with 3/8" x 7/8" rectangular slots to receive shelf clip.
- Post front is slotted on 3” centers for beam connection and is punched on 3” centers for beam connection set screw.
- Front to back horizontal and angled channel bracing shall be 14 gauge cold rolled steel welded to the vertical posts to create a rigid upright structure.
