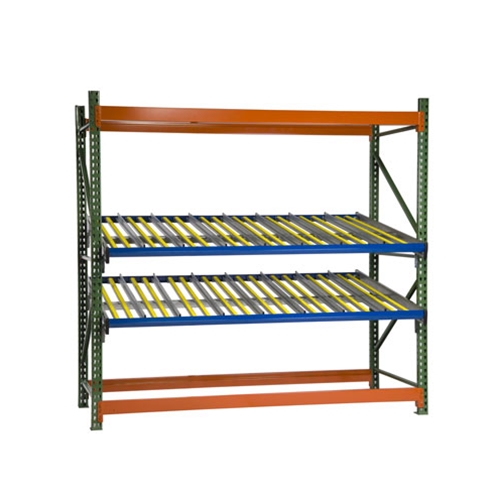

KDR Gravity Flow Pallet Racking

KDR Gravity Flow Rack Levels for Pallet Rack Shelving for improved picking and storage efficiency, by SSI Schaefer


It has never been so easy to add Gravity Flow Rack Leves to existing Pallet Rack Systems to turn them into highly efficient picking stations. You can customize the level adding more guides and rollers to fit your exact box or bin dimensions. Multiple dimensions can be even combined on the same level, making it extremely flexible to adpat to your specific needs. Levels are compatible with 96" Pallet Rack levels, and can reach an astonishing 2,400 lbs capacity. Rollers are high-density injection molded thermoplastic 1" wide and 1" diameter. Sides are slotted in 1" increments to easily create the optimum picking and sliding angle. With Schaefer's pre-built kits, 4 botls is all it takes to complete installation. Most items simply drop in for convenient hassle-free assembly. Fits most teardrop systems on the market. Contact us today for details on how to verify the compatibility of your system. KDR Gravity Flow Rack Levels for Pallet Racking available in stock.

  • Adaptor clips fit most tear Drop pallet Rack Systems on the market. PLEASE CONTACT US FOR VERIFICATION PROCESS
  • Gravity Flow Levels include 5 guides and 6 roller lanes, 2 roller tracks on each lane
  • Levels are fully adjustable in 0.25" high or 1" angle increments for improved ergonomy
  • Rollers & guides adjustable in 0.18" increments across the width to fit any container
  • Levels can hold up to 2,400lbs
  • 4 botls is all it takes to built the levels. The rest of the items simply snap and lock in for convenient hassle-free assembly
Assembly Instructions
Product Specifications
Stock Number Width Depth Extra Information Price Quantity
Stock #:KDRPL.052096 Width:96 Depth:52 Extra Information:Extra Level Pallet Rack. Kit includes 5 Guides and 12 Rollers tracks Price:
$1,035.00
Stock #:KDRPL.096096 Width:96 Depth:96 Extra Information:Extra Level Pallet Rack. Kit includes 5 Guides and 12 Rollers tracks Price:
$1,628.00
**Load capacity based on UDL, Uniformly Distributed Load.
Stock Number Depth Extra Information Price Quantity
Stock #:KTL.3030C Depth:123 Extra Information:Extra Guide/Dividing Rail Price:
$71.50
Stock #:KTL.0955C Depth:41 Extra Information:Extra Guide/Dividing Rail Price:
$24.50
Stock #:KTL.1455C Depth:61 Extra Information:Extra Guide/Dividing Rail Price:
$36.00
Stock #:KTL.1830C Depth:76 Extra Information:Extra Guide/Dividing Rail Price:
$42.50
Stock #:KTL.2430C Depth:96 Extra Information:Extra Guide/Dividing Rail Price:
$59.10
Stock #:KTL.1255C Depth:52 Extra Information:Guides/ Dividing Rails Price:
$30.80
**Load capacity based on UDL, Uniformly Distributed Load.
Stock Number Depth Extra Information Price Quantity
Stock #:KR28S.3045C Depth:123 Extra Information:Rollers Price:
$44.90
Stock #:KR28S.0970C Depth:41 Extra Information:Rollers Price:
$15.30
Stock #:KR28S.1270C Depth:52 Extra Information:Rollers Price:
$19.60
Stock #:KR28S.1470C Depth:61 Extra Information:Rollers Price:
$22.40
Stock #:KR28S.1845C Depth:76 Extra Information:Rollers Price:
$27.70
Stock #:KR28S.2445C Depth:96 Extra Information:Rollers Price:
$36.40
**Load capacity based on UDL, Uniformly Distributed Load.
Stock Number Height Width Depth Extra Information Price Quantity
Stock #:K.AT2700 Height: Width:106 Depth: Extra Information:Beam Price:
$155.40
Stock #:K.AT1350 Height: Width:53 Depth: Extra Information:Beam Price:
$92.10
Stock #:K.AT1800 Height: Width:71 Depth: Extra Information:Beam Price:
$113.20
Stock #:K.AT2200 Height: Width:87 Depth: Extra Information:Beam Price:
$131.00
Stock #:BOLT.M8x20 Height: Width: Depth: Extra Information:Bolt M8x20 Price:
$0.20
Stock #:BOLT.M8X25HFP Height: Width: Depth: Extra Information:Bolt M8x25 Price:
$1.30
Stock #:KSBV.0110035G Height: Width: Depth: Extra Information:Fixed Wheel Price:
$37.50
Stock #:KDR.FP Height: Width: Depth: Extra Information:Footplate Price:
$3.10
Stock #:KRP63.2550C Height:79 Width: Depth:101 Extra Information:Rack Frame Price:
$527.00
Stock #:KRP63.0850C Height:79 Width: Depth:34 Extra Information:Rack Frame Price:
$237.00
Stock #:KRP63.1250C Height:79 Width: Depth:49 Extra Information:Rack Frame Price:
$268.00
Stock #:KRP63.1450CH Height:79 Width: Depth:57 Extra Information:Rack Frame Price:
$258.00
Stock #:KRP63.2150C Height:79 Width: Depth:85 Extra Information:Rack Frame Price:
$570.00
Stock #:ANCHOR.KBTZ38X3 Height: Width: Depth: Extra Information:Frame Anchor Price:
$1.10
Stock #:KDR.FC050 Height: Width: Depth: Extra Information:Frame Connector Price:
$22.80
Stock #:KDR.DB1247 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.6 Price:
$11.40
Stock #:KDR.DB1773 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.7 Price:
$16.20
Stock #:KDR.DB1911 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.8 Price:
$17.50
Stock #:KDR.DB0910 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.5 Price:
$8.30
Stock #:KDR.LB1185 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.11 Price:
$16.30
Stock #:KDR.LBC1185 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.10 Caster Price:
$135.30
Stock #:KDR.LB1385 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.13 Price:
$19.10
Stock #:KDR.LBC1385 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.10 Caster Price:
$100.10
Stock #:KDR.LB0785 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.9 Price:
$7.20
Stock #:KDR.LBC0785 Height: Width: Depth: Extra Information:Frame Diagonal C30/15/8/1.10 Caster Price:
$108.20
Stock #:KRP63.CS0850C Height:79 Width: Depth:34 Extra Information:Frame Mobile Price:
$451.00
Stock #:KRP63.CS1250C Height:79 Width: Depth:49 Extra Information:Frame Mobile Price:
$499.00
Stock #:KRP63.CS1450 Height:79 Width: Depth:57 Extra Information:Frame Mobile Price:
$486.00
Stock #:K.AK1 Height: Width: Depth: Extra Information:End Cap Price:
$1.30
Stock #:K.LQ1 Height: Width: Depth: Extra Information:Profile Connector K-LQ1 Price:
$1.40
Stock #:K.LV1 Height: Width: Depth: Extra Information:Side Profile Plate K-LV1 Price:
$3.00
Stock #:KQH.1350 Height: Width: Depth: Extra Information:Rear Profile K-QH Price:
$54.30
Stock #:KQH.1800 Height: Width: Depth: Extra Information:Rear Profile K-QH Price:
$74.40
Stock #:KQH.2200 Height: Width: Depth: Extra Information:Rear Profile K-QH Price:
$90.50
Stock #:KQH.2430 Height: Width: Depth: Extra Information:Rear Profile K-QH Price:
$105.60
Stock #:KQH.2700 Height: Width: Depth: Extra Information:Rear Profile K-QH Price:
$106.70
Stock #:KQI40.1350 Height: Width: Depth: Extra Information:Center Profile K-QI 40 Price:
$33.50
Stock #:KQI40.1800 Height: Width: Depth: Extra Information:Center Profile K-QI 41 Price:
$44.90
Stock #:KQI40.2200 Height: Width: Depth: Extra Information:Center Profile K-QI 42 Price:
$54.90
Stock #:KQI40.2700 Height: Width: Depth: Extra Information:Center Profile K-QI 43 Price:
$67.40
Stock #:KQI50.2430 Height: Width: Depth: Extra Information:Center Profile K-QI Price:
$78.50
Stock #:KQV.1350 Height: Width: Depth: Extra Information:Front Profile K-QV Price:
$87.20
Stock #:KQV.1800 Height: Width: Depth: Extra Information:Front Profile K-QV Price:
$118.70
Stock #:KQV.2200 Height: Width: Depth: Extra Information:Front Profile K-QV Price:
$143.10
Stock #:KQV.2430 Height: Width: Depth: Extra Information:Front Profile K-QV Price:
$165.80
Stock #:KQV.2700 Height: Width: Depth: Extra Information:Front Profile K-QV Price:
$173.50
Stock #:K.SA1 Height: Width: Depth: Extra Information:Rear Support Clip K-SA1 Price:
$1.20
Stock #:KSW.1025 Height: Width: Depth: Extra Information:Side Profile K-SW Price:
$35.70
Stock #:KSW.1325 Height: Width: Depth: Extra Information:Side Profile K-SW Price:
$46.20
Stock #:KSW.1525 Height: Width: Depth: Extra Information:Side Profile K-SW Price:
$53.20
Stock #:KSW.1900 Height: Width: Depth: Extra Information:Side Profile K-SW Price:
$66.40
Stock #:KSW.2500 Height: Width: Depth: Extra Information:Side Profile K-SW Price:
$87.30
Stock #:KSW.3100 Height: Width: Depth: Extra Information:Side Profile K-SW Price:
$108.30
Stock #:K.VH1 Height: Width: Depth: Extra Information:Level Support Clip K-VH1 Price:
$1.40
Stock #:KVH.PRIF Height: Width: Depth: Extra Information:Clip Front Price:
$2.50
Stock #:KVH.PRO Height: Width: Depth: Extra Information:Clip Outer Price:
$1.90
Stock #:KVH.PRIR Height: Width: Depth: Extra Information:Clip Rear Price:
$3.10
Stock #:BOLT.M8x16T Height: Width: Depth: Extra Information:Bolt M8X16T Price:
$0.20
Stock #:NUT.M8 Height: Width: Depth: Extra Information:Nut M8 Price:
$0.20
Stock #:KDR63.POST1994 Height: Width: Depth: Extra Information:Post P60/65/2 Price:
$81.70
Stock #:KDR.TC40X60 Height: Width: Depth: Extra Information:Top Cap Exterior Price:
$0.90
Stock #:KDR.TC25X35 Height: Width: Depth: Extra Information:Top Cap Interior Price:
$1.20
Stock #:K.AT2700C Height: Width:106 Depth: Extra Information:Reinforcing Cross Beam Price:
$156.60
Stock #:K.AT1350C Height: Width:53 Depth: Extra Information:Reinforcing Cross Beam Price:
$93.30
Stock #:K.AT1800C Height: Width:71 Depth: Extra Information:Reinforcing Cross Beam Price:
$114.40
Stock #:K.AT2200C Height: Width:87 Depth: Extra Information:Reinforcing Cross Beam Price:
$132.20
Stock #:KDR.SHIM Height: Width: Depth: Extra Information:Shim Plate 1mm Price:
$1.30
Stock #:KDR.SPACER Height: Width: Depth: Extra Information:Spacer DH30 Price:
$0.50
Stock #:KSLV.0110035GFSTR Height: Width: Depth: Extra Information:Swivel Wheel Price:
$72.80
Stock #:KDR.TOPCAP Height: Width: Depth: Extra Information:Top Cap Price:
$4.10
Stock #:WASHER.M8 Height: Width: Depth: Extra Information:Washer M8 Price:
$0.20
**Load capacity based on UDL, Uniformly Distributed Load.
